Model: BEST-900S-5

5 Axis Servo Double Arm Single Section Manipulator

Product Features:
1. Five-axis servo drive: This robotic arm adopts advanced five-axis servo drive technology, featuring high precision, high speed, and high stability. Through precise servo control, complex motion trajectories and accurate operations can be achieved.
2. Lateral movement structure: Compared to traditional linear robotic arms, the lateral movement structure can provide a larger working range and more flexible movement. The robotic arm can move freely in the horizontal plane, adapting to the needs of different working scenarios.
3. Dual-arm design: The robotic arm adopts a dual-arm design, with each arm having independent movement capabilities. The dual arms can perform different operations simultaneously, improving work efficiency and production capacity.
4. Single section structure: The robotic arm adopts a single section structure, featuring compact design and lightweight. This makes the robotic arm more convenient to install and maintain, and suitable for various working environments.
5. Multiple gripper compatibility: The robotic arm is equipped with multiple grippers, which can adapt to the clamping needs of different workpieces. Users can select suitable grippers according to actual needs, achieving diverse processing operations.
Product Advantages:
1. High precision positioning: The five-axis servo drive technology enables the robotic arm to have high precision positioning capabilities, achieving micron-level accuracy control. This is particularly important for applications requiring fine processing and assembly operations.
2. High-speed movement: The robotic arm uses servo drive technology, enabling high-speed movement. Through optimized control algorithms, the robotic arm can complete complex motion trajectories in a short time, improving production efficiency.
3. High flexibility: The lateral movement structure and dual-arm design make the robotic arm highly flexible. The robotic arm can move freely in the horizontal plane, reaching positions that traditional robotic arms cannot reach, achieving more flexible operations.
4. Wide working range: The robotic arm has a wide working range, adapting to workpieces of different sizes and shapes. Whether it is a large or small workpiece, the robotic arm can perform precise operations, meeting the needs of different customers.
5. Easy operation: The robotic arm is equipped with a user-friendly human-machine interface, making operation simple and convenient. Users can operate the robotic arm through touch screen or buttons, without extensive professional knowledge, to achieve various functions of the robotic arm.
6. Safety and reliability: The robotic arm adopts advanced safety protection measures to ensure safety during operation. For example, the robotic arm is equipped with an emergency stop button and safety sensors, which can stop motion in time to avoid accidents.
Summary:
The five-axis servo lateral movement dual-arm single section robotic arm is an automated device with high precision, high speed, and high flexibility. It adopts advanced five-axis servo drive technology, featuring high precision positioning and high-speed movement capabilities. The lateral movement structure and dual-arm design of the robotic arm give it a large working range and flexible movement methods. In addition, the robotic arm also has advantages such as multiple gripper compatibility, easy operation, and safety and reliability. Whether in precision processing, assembly operations, or other application fields, the five-axis servo lateral movement dual-arm single section robotic arm can demonstrate outstanding performance and effects, providing strong support for enterprises to improve production efficiency and quality.
Contact us

Description

Dimensions

About us

Contact us

Model
Applicable to injection molding machines
Up and down                     Lead      Horizontal movement  Side angle Max load (lncuding flxtures)   Take  out Empty  loop Drive mode Working pressure (kgf/cm³) Air consumption(nl/cycle) Power supply Power consumption (Kva) N.W (kg)
BEST-900S-5 80-220T 900 Main: 620
Jib: 620
1360 90° 5KG 2.5 6
Full AC
servo motor drive
5-7 8
Single phase AC220±10V 50/60HZ
3.05 325

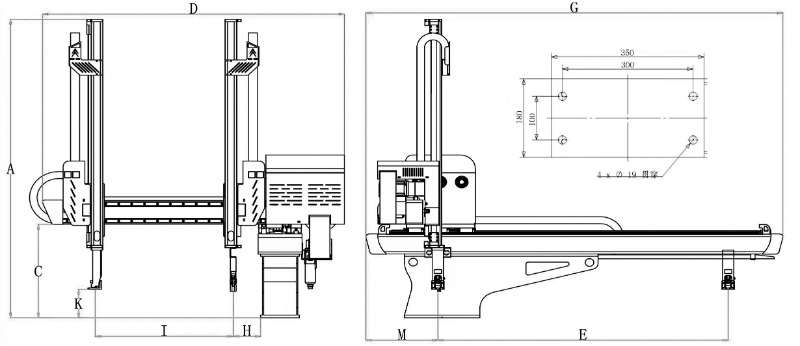

Model A C D E G H I K M
BEST-900S-5 1530 475 1420 1350 1950 130 620 145 320
